Pneumatic Hot melt hand gun for Cartrigdes TR 70 lcd

Pneumatisch_PUR_hotmelt_handpistool_TR70_1
Pneumatisch_PUR_hotmelt_handpistool_TR70_2
Product SKU:  PHP-TR70LCD
Product Availability:   1
Pneumatic Hot melt hand gun for (PUR) hot melt adhesives in cartridges. Delivery excluding work station.
Price without tax:
€1.190,00
Tax amount €249,90

Intadgun TR 70 LCD

intadb vignet wit 80

Pneumatisch PUR hotmelt handpistool TR70 1

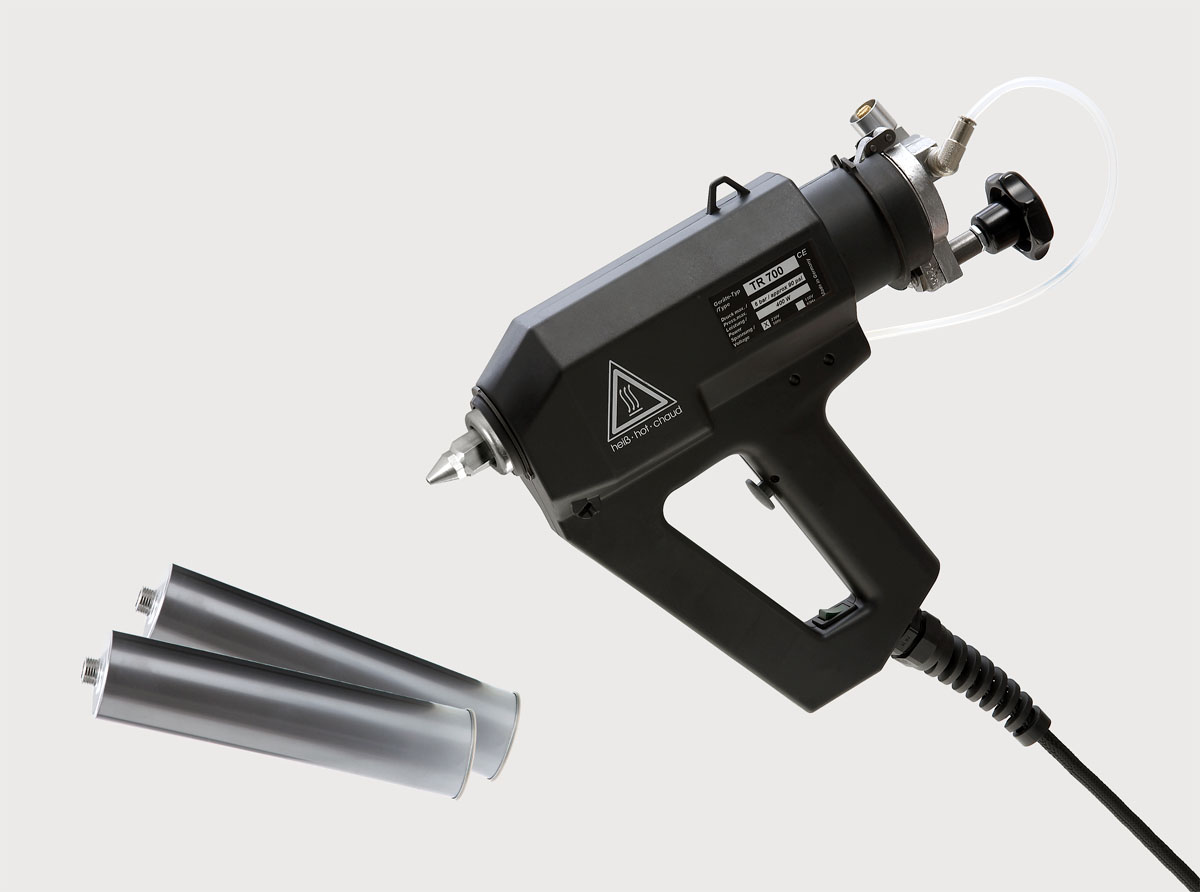

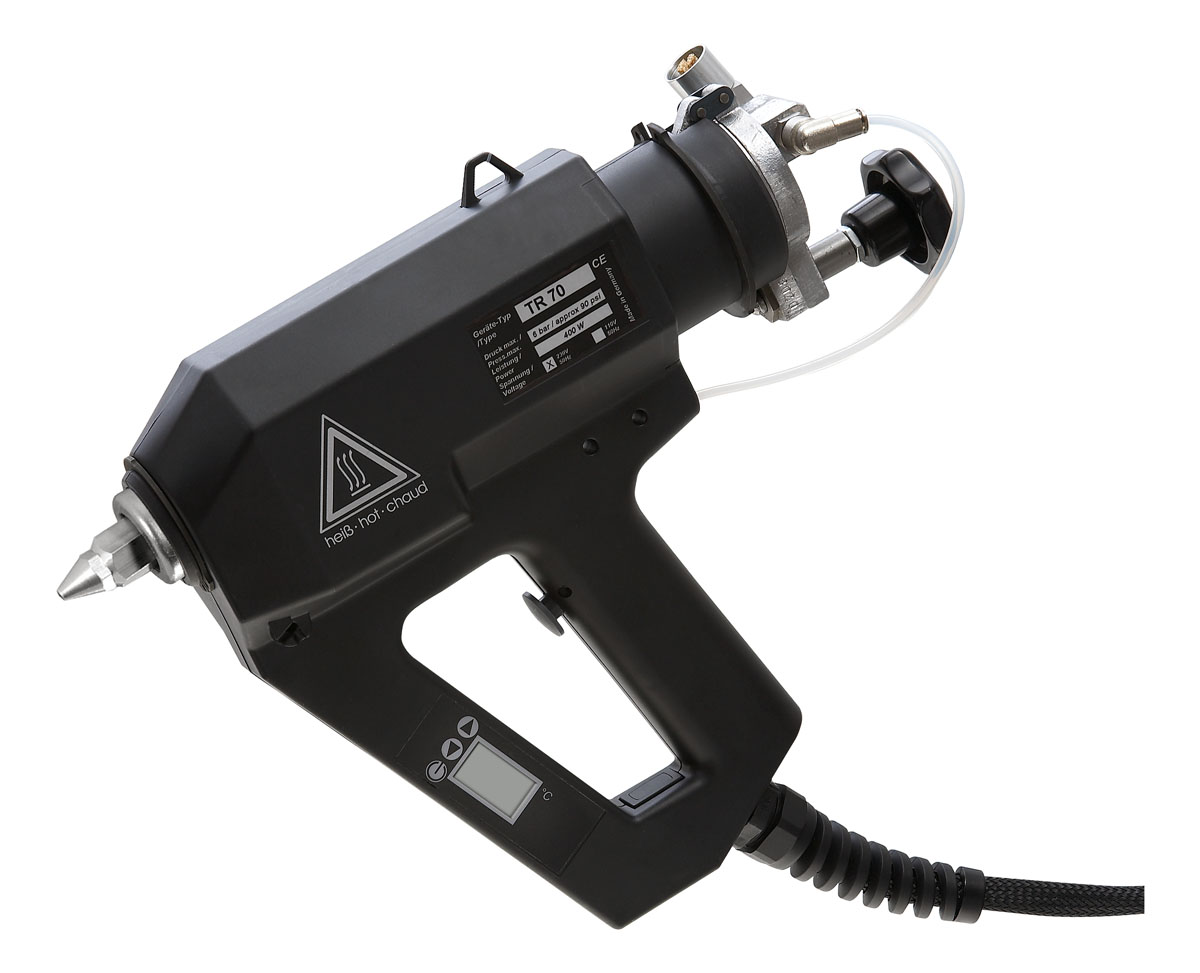

The TR 70 LCD cartridge gun applies hot-melt adhesives
from 310ml aluminium cartridges in beads and lines.

The TR 70 LCD lets you apply hot-melt adhesive as beads and lines. The hot-melt glue is extruded through air pressure. Pneumatic glue guns increase work speed and simplify exact dosing of the glue. Thanks to the built in electronic temperature regulation the glue gun is ready to work within 3 to 10 minutes. Further more, it keeps the temperature on a constant level thus
is a perfect suit for processing temperature sensitive hot-melt
glue. A LCD-display and push-buttons allow a precise temperature adjustment. This way, the user always knows the current temperature of the glue applicator and is able to apply
the glue at the intended temperature. The TR 70 LCD glue gun uses 310 ml aluminium hotmelt glue cartridges,
which for instance can contain PUR hot melt glue or POR-hot-melt adhesive. The cartridges can be swapped easily and hassle-free. The optional cartridge pre-heater KVG heats up the glue before use and increases the available glue output per hour. The number of possible application patterns is widely extended by our nozzle range. Almost all of the offered nozzles can be used with all of our glue guns in combination with a separate adapter. A cartridge glue gun in combination with empty cartridges lets you test and process different hot-melts within a short period of time. This is especially useful for working in laboratories or when qualifying a new hot-melt adhesive for a big production line.

Technical data
 Type TR 70 LCD TR 80 LCD
 Power supply 230 V / 50 Hz 230 V / 50 Hz
 Consumption 600 W / 2.6 Ah 650 W / 2.8 Ah
 Temperature controle Electronic Electronic
 Temperature adjustment 50 – 210°C* 50 – 210°C*
 Temperature precision ± 2°C ± 2°C
 Temperature read-out digital digital
 Heating time ± 3 - 10 min. ** ± 3 - 10 min. **
 Degree of protection I I
 Class of protection IP 30 IP 30
 Weight 1.400 gr 1.400 gr
 Operation Pneumatic / 0.5 - 6 bar Pneumatic / 0.5 - 6 bar
 Length of electric cord 8.5m 4.5m
 Glue application Lines or dots Spray/Swirl
 Recommend melts 310 ml hot melt cardridges 310 ml hot melt cardridges

* Adjustable temperature, through which a great variety of hot melt glues can be worked with.
   This hot melt guns are also available on special request in High Temperature versions (50 - 235°C or 250°C)
** Depending on the hotmelt in use.


Accessoiries

Standaard voor TR serie hotmelt handpistool kl

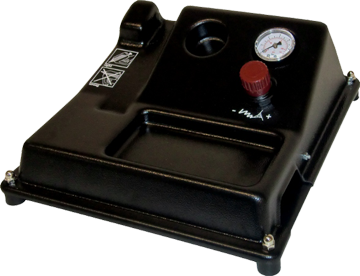

Work station with manometer and pressure regulator

TR pneu serie handpistolen nozzles
Please inform after our variety of nozzles.
