UES Swirl nozzle brass 7 air holes

Product SKU: UESSWM7GTS

Product Availability: Order on request

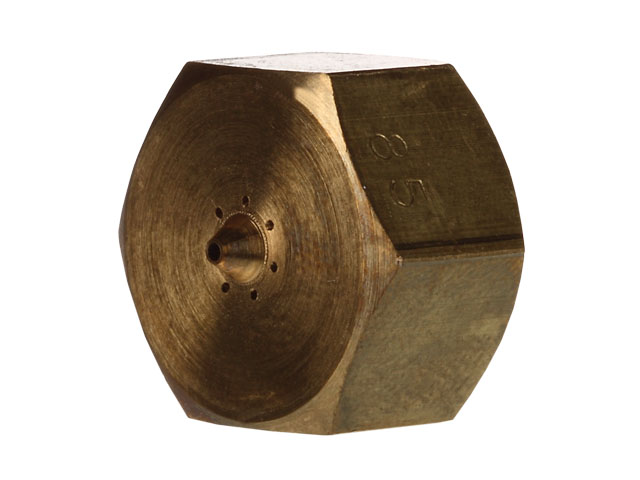

UES Swirl nozzle brass 7 air holes, ACW or CCW turning.
Besides the applicability on swirl modules; these nozzles can also be used on the UES HP 07 hand gun swirl.

Ask for price

Description

Application	Swirl (circle patern)
Glue pressure	Max. 100 bar
Operation temperature	Max. 230 °C

Brass swirl nozzles 7 air holes

Ø mm	Ø inch	Turn direction	Article nr.	Nordson ref.nr.	Robatech ref.nr.
0,30	0,012	CCW	100689	---	---
0,40	0,016	CCW	100102	---	---
0,50	0,020	CCW	100105	---	---
0,60	0,024	CCW	100108	---	---
0,70	0,028	CCW	100110	---	---
0,80	0,032	CCW	100112	---	---
1,00	0,040	CCW	100114	---	---
1,20	0,048	CCW	101253	---	---
1,50	0,060	CCW	101254	---	---
2,00	0,080	CCW	100696	---	---
0,30	0,012	ACW	101247	---	---
0,35	0,014	ACW	101422	---	---
0,40	0,016	ACW	101423	---	---
0,45	0,018	ACW	101250	---	---
0,50	0,020	ACW	102022	---	---
0,60	0,024	ACW	102023	---	---
